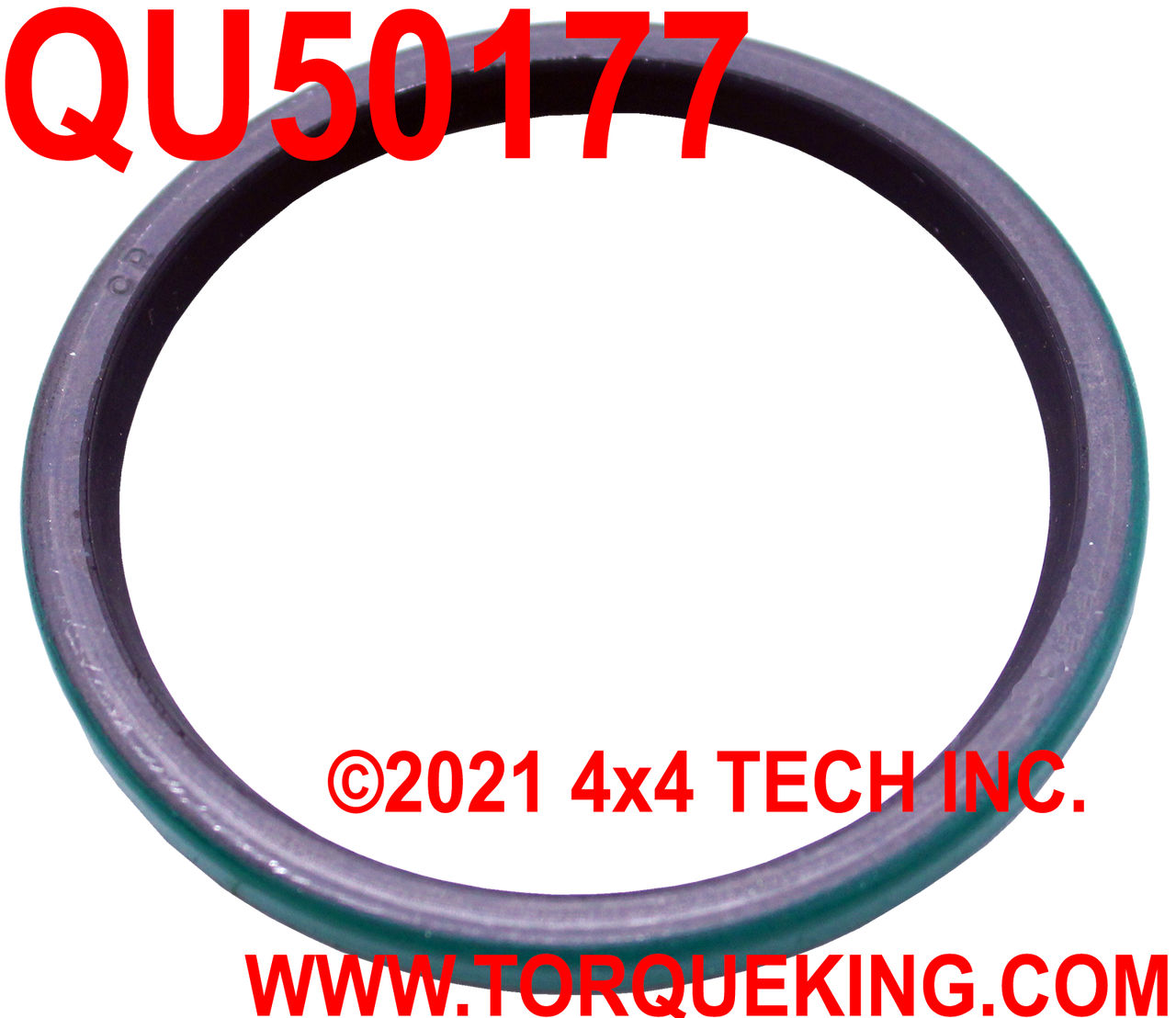

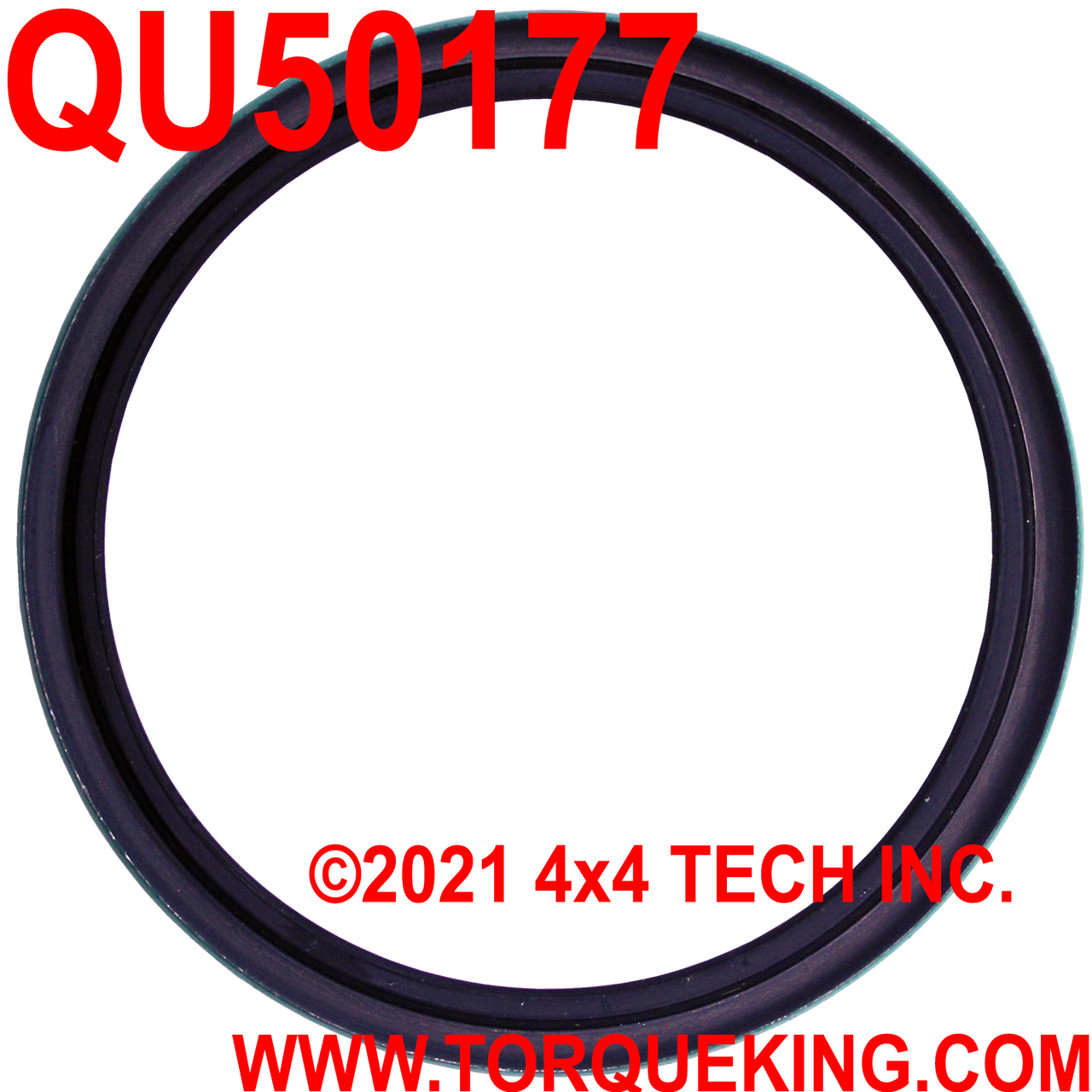

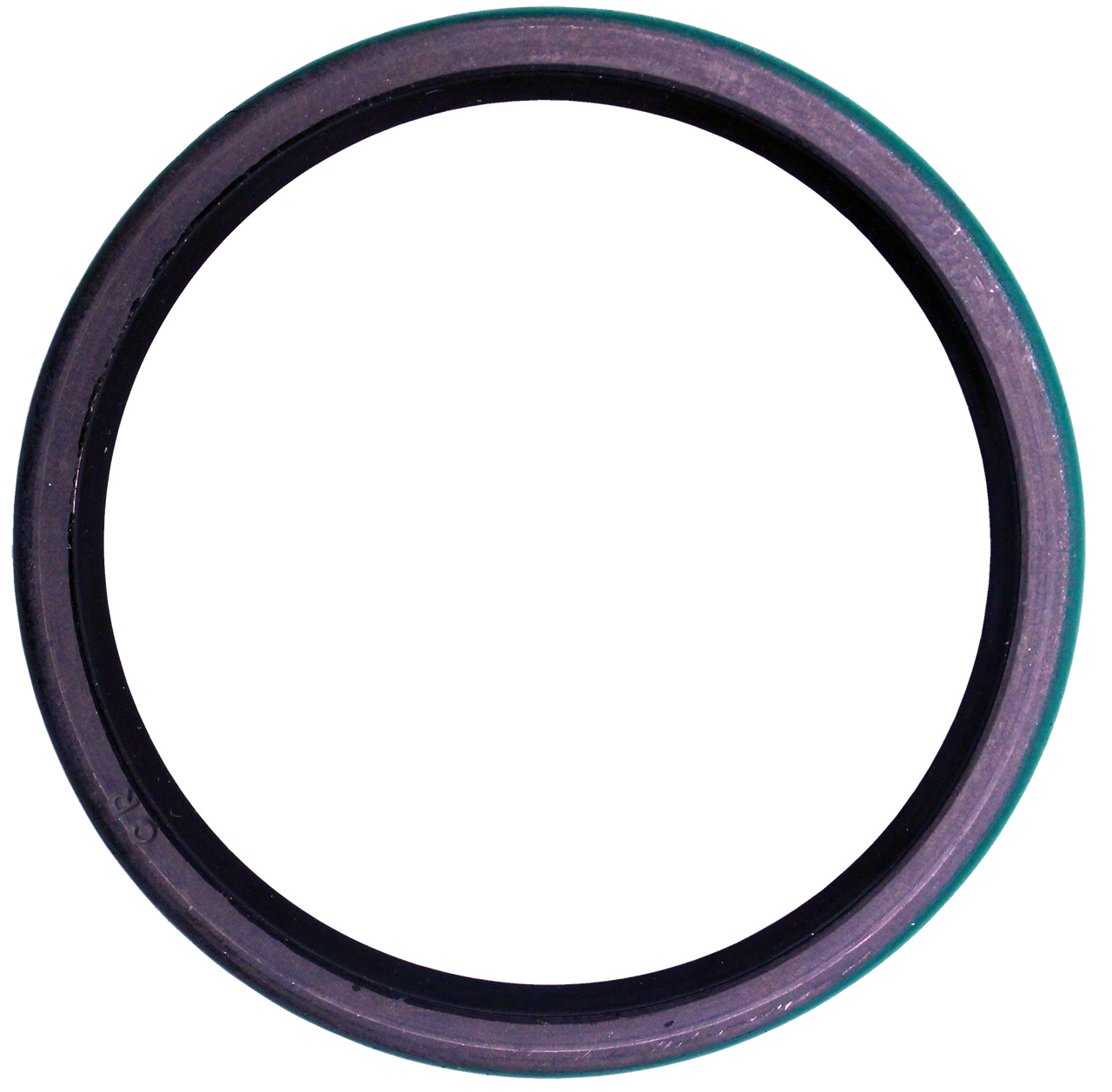

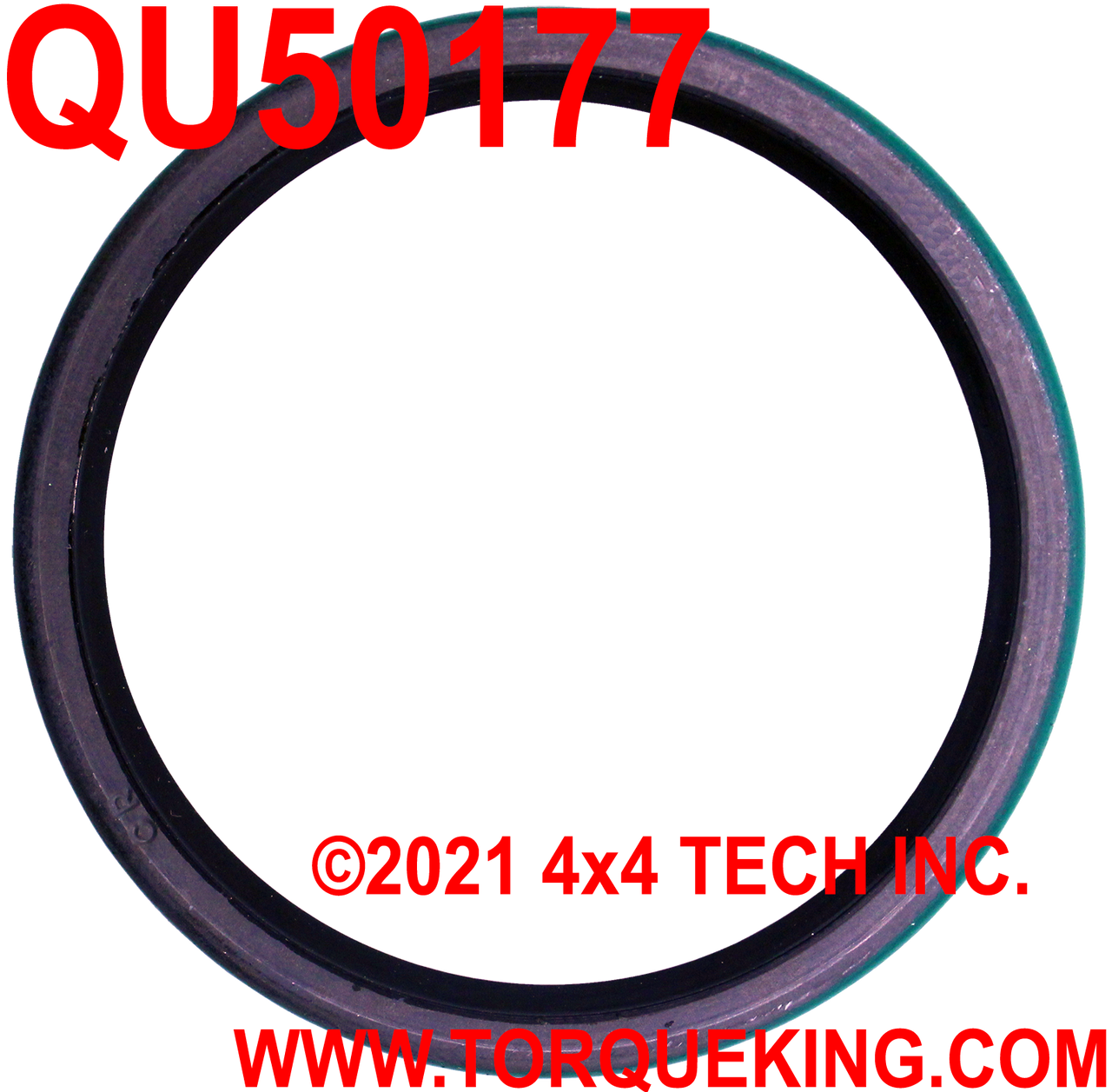

QU50177 Genuine New Process Oil Pump Seal

QU50177 Genuine New Process Oil Pump Seal is an exact original equipment manufacturer replacement Seal that fits most New Process chain drive transfer cases. Made in U.S.A. or Mexico.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Lubricate
Prime
Matching Parts for 1998-2002 Dodge NP241DHD Transfer Cases
Matching Parts for 1998-2002 Dodge NP241DLD Transfer Cases
Saved for Future Use
Saved for Future Use
Applications

Tech Note 1: Lubricate
Lubricate the Seal lips and driveshaft slip yoke with petroleum jelly to provide initial lubrication.

Tech Note 2: Prime
Don't forget to prime the oil pump!!

Tech Note 3: Matching Parts for 1994-2002 Dodge NP241DHD Transfer Cases
Exploded View XV4000 1994-1996.5 Dodge Ram NP241DHD Transfer Case
Exploded View XV4001 1996.5-1997 Dodge Ram NP241DHD Transfer Case
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QU10872 Synchro Hub to Mainshaft Snap Ring
QU10820 Synchro Strut Tension Spring
QU11166 Synchro Hub
QU10821 Synchro Strut
QU50354 Synchro Sleeve
QU10819 Synchro Ring
QU50000 Drive Chain
QU10921 Upper Chain Drive Sprocket
QU50523 Rear Output Mainshaft, 1998-2002
QU10936 Oil Pump, 1996.5-2002
QU10802 O-Ring
QU10823 Oil Pump Feed Tube
QU10673 Oil Pump Pickup Hose
QU10674 Oil Pump Screen
QU50191 Chip Magnet
QU10817 Rear Output Shaft to Rear Bearing Snap Ring, 1996.5-2002
QU50207 Rear Output Bearing, 1996.5-2002
QU10815 Rear Output Bearing to Case Snap Ring, 1996.5-2002
QU40354 Rear Output Slip Yoke, 1998-2002
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 3-1/4 Quarts to Fill

Tech Note 4: Matching Parts for 1994-2002 Dodge NP241DLD Transfer Cases
Exploded View XV4002 1994-1997 Dodge Ram NP241DLD Transfer Case
Exploded View XV4004 1998-2002 Dodge Ram NP241DLD Transfer Case
QU10872 Synchro Hub to Mainshaft Snap Ring
QU10820 Synchro Strut Tension Spring
QU11166 Synchro Hub
QU10821 Synchro Strut
QU50354 Synchro Sleeve
QU10819 Synchro Ring
QU50071 Drive Chain
QU50355 Upper Chain Drive Sprocket
QU50603 Rear Output Mainshaft, 1998-2002
QU50423 Oil Pump
QU10802 O-Ring
QU10823 Oil Pump Feed Tube
QU10673 Oil Pump Pickup Hose
QU10674 Oil Pump Screen
QU50191 Chip Magnet
QU50875 Rear Output Bearing
QU10816 Snap Ring
QK2069 Transfer Case Saver Kit
QU40813 Rear Output Slip Yoke, 1998-2002
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 2.31 Quarts to Fill

Tech Note 5: Saved for Future Use
Saved for Future Use

Tech Note 6: Saved for Future Use
Saved for Future Use

Applications
Most New Process Chain Drive Aluminum Transfer Cases
