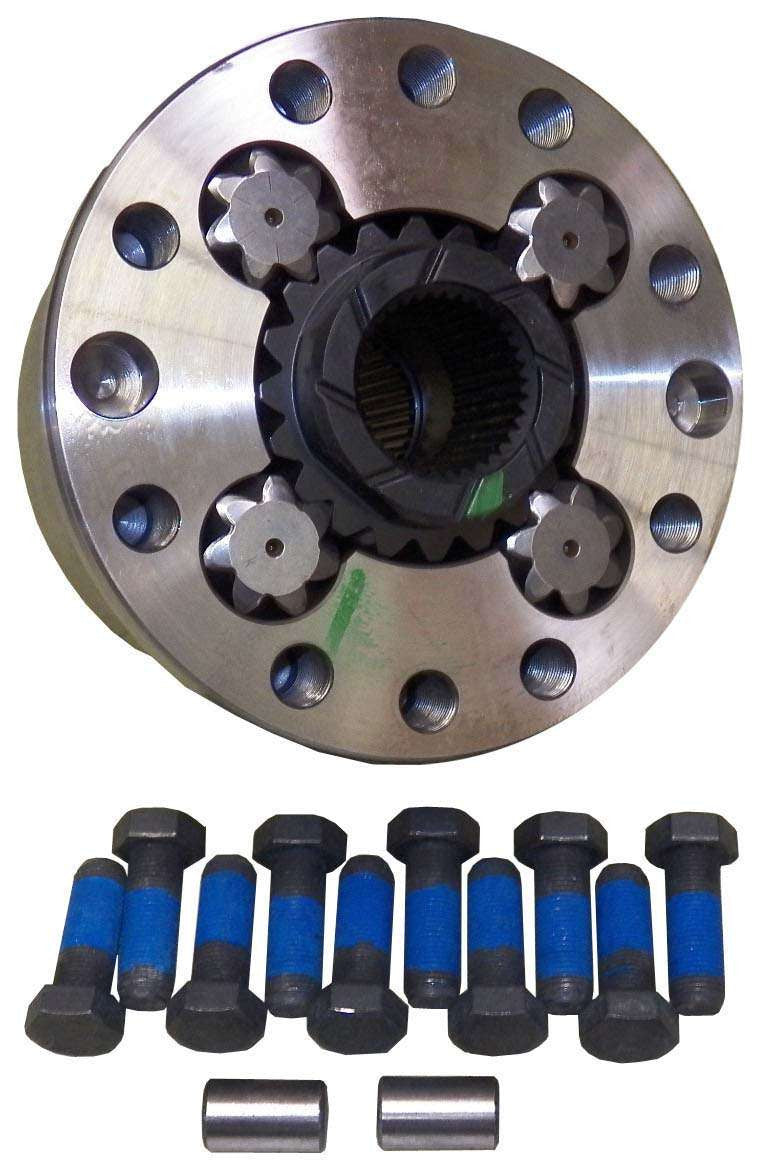

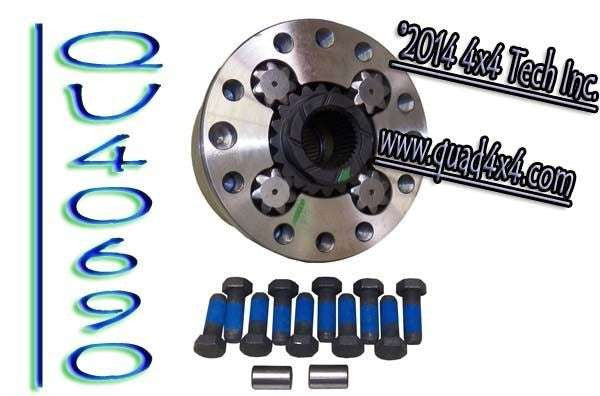

QU40690 True-Trac Gear Type Limited Slip Differential for Dana S111 Rear Axles

QU40690 True-Trac Gear Type Limited Slip Differential for Dana S111 rear axles in 2008-up Ram 4500, Ram 5500 trucks.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Spicer Trac-Lok
S110L Upgrade
Matching Parts
Applications

Tech Note 1: Spicer Trac-Lok
The new Spicer® Trac-Lok™ differential provides improved traction capability without the driver engaging any switches or mechanisms. It is an autonomous device that acts as an open differential and freely differentiates in normal operating mode. During a slip event, it automatically sends approximately three times more torque to the high traction wheel-end. It then automatically returns to full differentiation as conditions change for maximum vehicle handling and ease of use. The Spicer® Trac-Lok™ comes in a lightweight five-pinion pair design to serve a variety of Class 6 and Class 7 medium-duty applications.

Spicer® Trac-Lok™ Benefits
• Limits wheel-slip rather than fully locking the differential for improved vehicle maneuverability
• Lightweight and compact design
• Automatic traction engagement, no driver intervention required
• No wiring or pneumatic connections
• No special lubricants or friction modifiers required
• Superior lifetime torque bias performance
• Smooth engagement and transparent to the driver
• Retrofittable with existing Spicer® S111*
• Approximately 10 lb. lighter than competing designs
*S110 axles currently in service require a new primary gearing change to accommodate the Spicer Trac-Lok™

Tech Note 2: S110L Upgrade
As part of the Trac-Lok launch, Dana has also upgraded the Spicer® S110L medium-duty axle with a more robust differential assembly that maximizes torque loading capacities. This upgrade does not apply to S110 open differential assemblies. To use QU40690 in S110L models the primary gearing and side gears must be replaced!

Tech Note 3: Matching Parts
QU42382 S111 Differential Dowel Pin

Applications
Ram:
Ram 4500/Ram 5500 with Dana S111 Rear Axles: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
