TK4036 Hub Service Kit for Warn M1 and M2 Hubs for Jeep and IHC

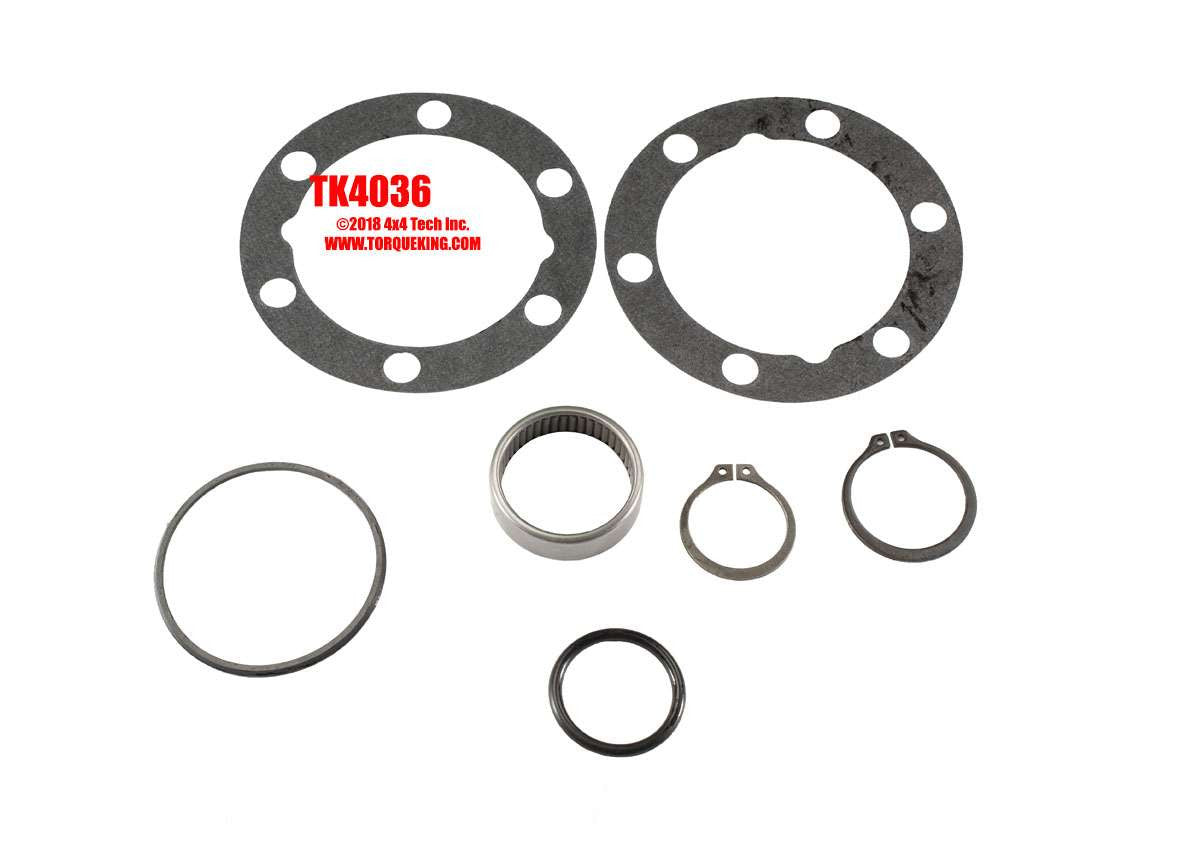

TK4036 Hub Service Kit for Warn M1 and M2 Hubs for Jeep and International. Contains 1 TK15095 outer O ring, 1 QU30075 inner O ring, 1 QU40292 inner gear support bearing, 1 QU40068 inner gear snap ring, 1 QU40225 axle shaft snap ring, and 2 QU15005 gasket. Order 1 Kit per side.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts
Applications

Tech Note 1: Matching Parts
XV165 Warn M2 Hub Exploded View
QU40225 Snap Ring
QU40292 Support Bearing
QU15005 6-Bolt Front Hub Gasket
QU95090 1/2" Long Torx Screw
QU95091 1/2" Long Hex Screw
TK15096 Warn Hub Pin
QU30075 Warn Hub O-Ring
TK15095 Hub O-Ring
QU95088 3/8" x 2-1/2" Super Grade 8 Bolt
QU95089 3/8" x 3" Super Grade 8 Bolt
QT9214 T30 Torx Bit
QT9215 5/32" Hex Bit

Applications

International:
Scout: 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, early 1971

Jeep:
CJ2A: 1945, 1946, 1947, 1948, 1949
CJ3A: 1949, 1950, 1951, 1952, 1953
CJ3B: 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
CJ5: 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
CJ6: 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
C101 Jeepster Commando: 1966, 1967, 1968, 1969, 1970, 1971
C104 Commando: 1972, 1973
Utility Wagon: 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
Utility Truck: 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
FC150, FC170: 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965
Wagoneer:  1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973
Gladiator Truck: 1963,  1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973
