QU40246 CAD Front Axle Shift Hub for Ram Dana Axles with Disconnect

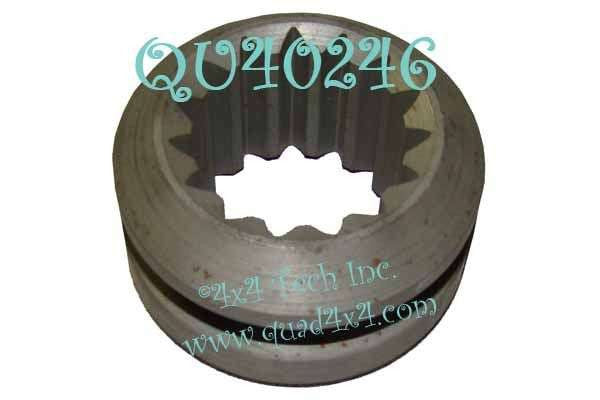

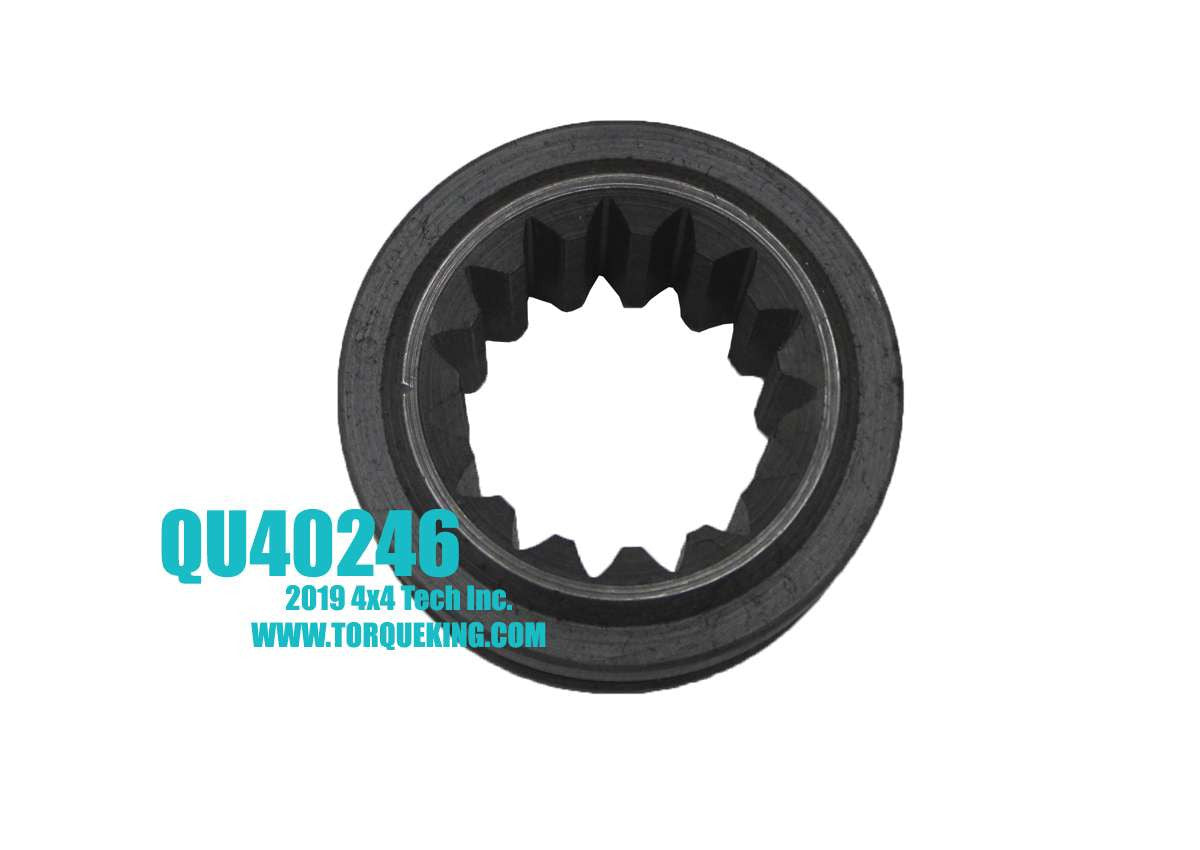

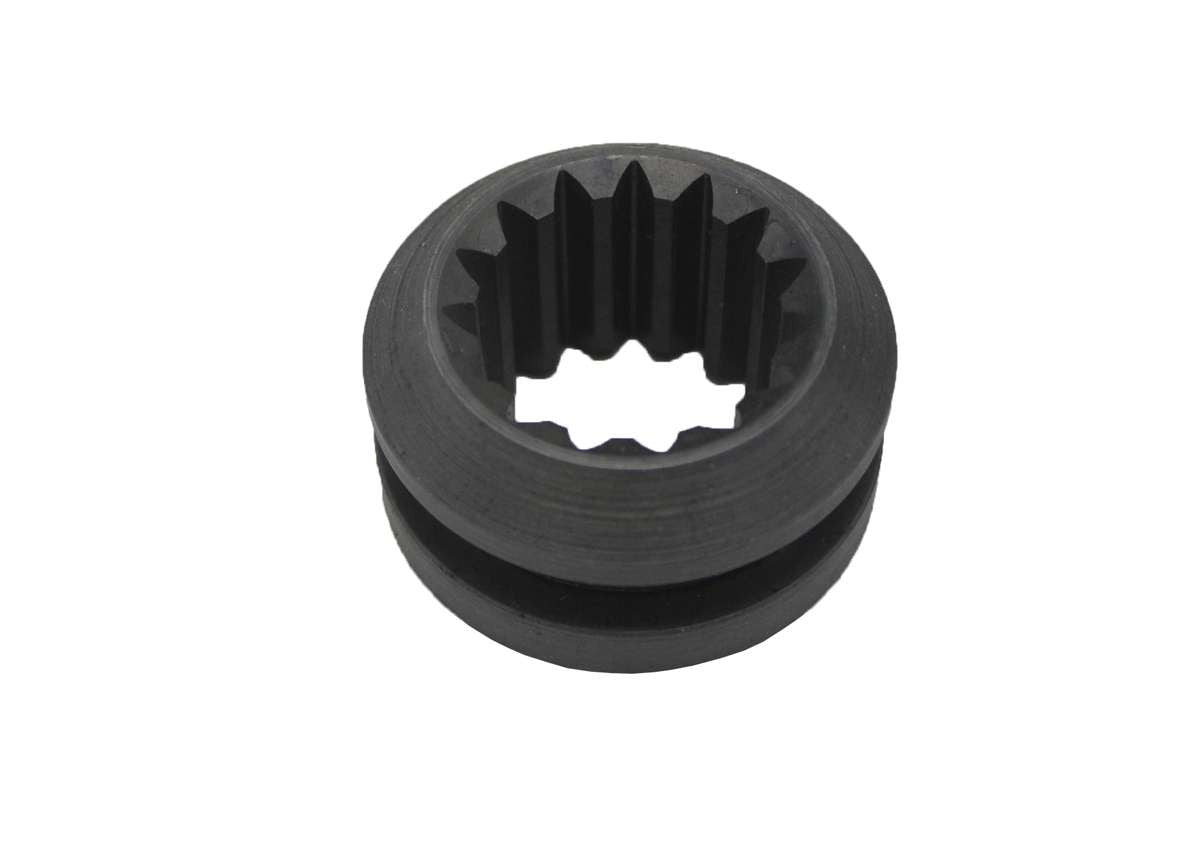

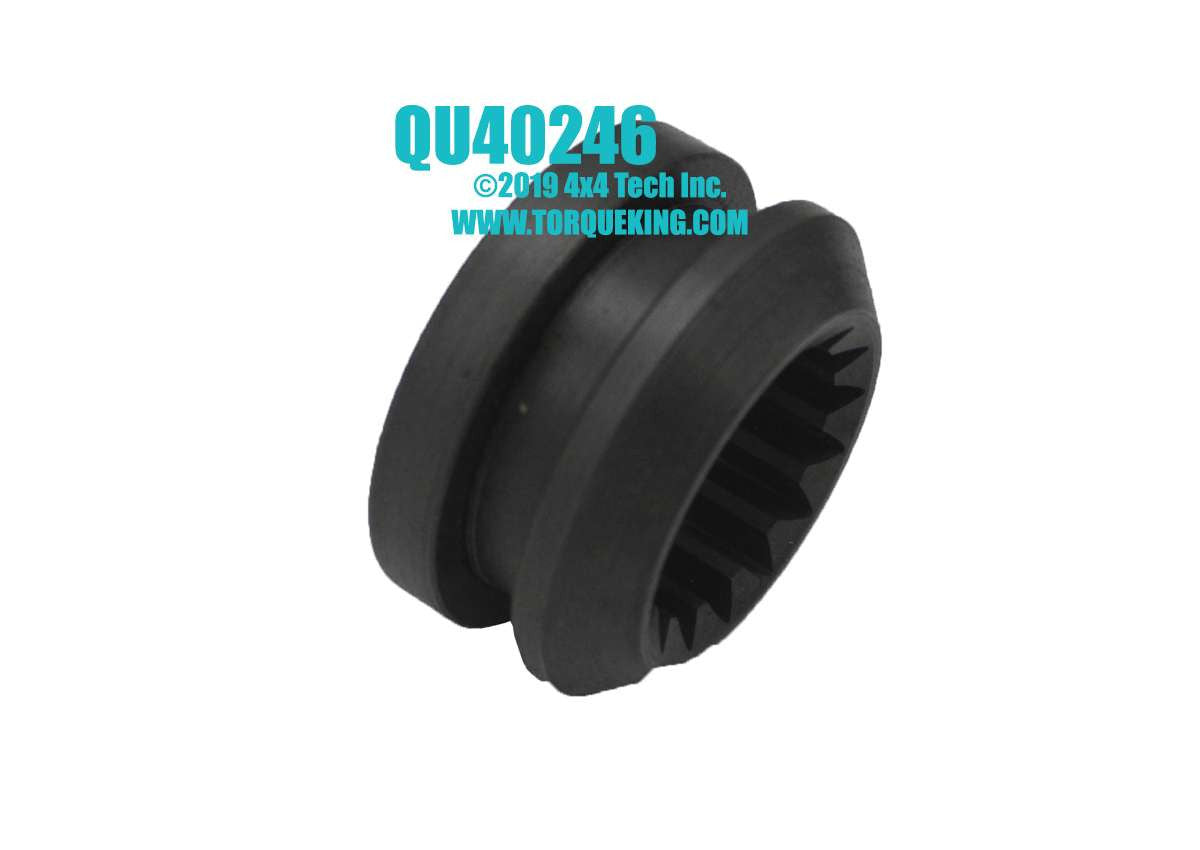

QU40246 Central Axle Disconnect (CAD) Clutch Collar for 1994-1999 Ram 2500, Ram 3500 and 1994-2001 Dodge Ram 1500 Dana Front Axles  couples the differential output shaft and right inner axle shaft when you activate Four Wheel Drive on your 1994-2001 Dodge Ram 1500 and 1994-1999 Dodge Ram 2500, Ram 3500 using a Dana-Spicer Model 44 or Model 60 front axle equipped with a vacuum controlled Central Axle Disconnect (CAD) system (15 spline shift collar 1500, 2500, 3500, Spicer). USA Made.

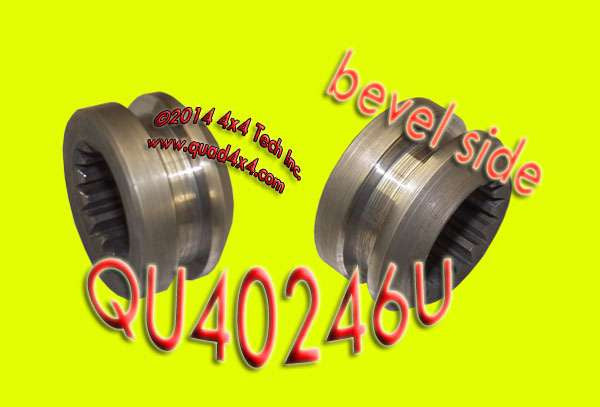

Available While Supplies Last: QU40246U Used Clutch Collar

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Reason To Replace
Applications

Tech Note 1: Reason To Replace
The hardened steel coupler usually only needs replacement when a malfunctioning CAD system is unable to complete a full shift. Under load, a partially engaged Clutch Collar will be forced off the Differential Output Shaft splines which causes both the shaft and Clutch Collar splines to wear down.

Applications:
Dodge Ram:
Ram 1500 Dana 44: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Ram 2500 Dana 44: 1994, 1995, 1996, 1997
Ram 2500, Ram 3500 Dana 60: 1994, 1995, 1996, 1997, 1998, 1999
