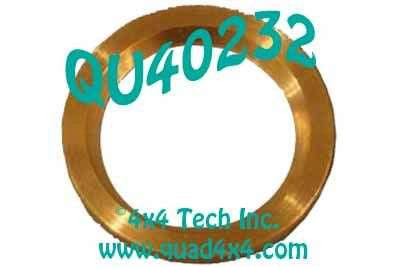

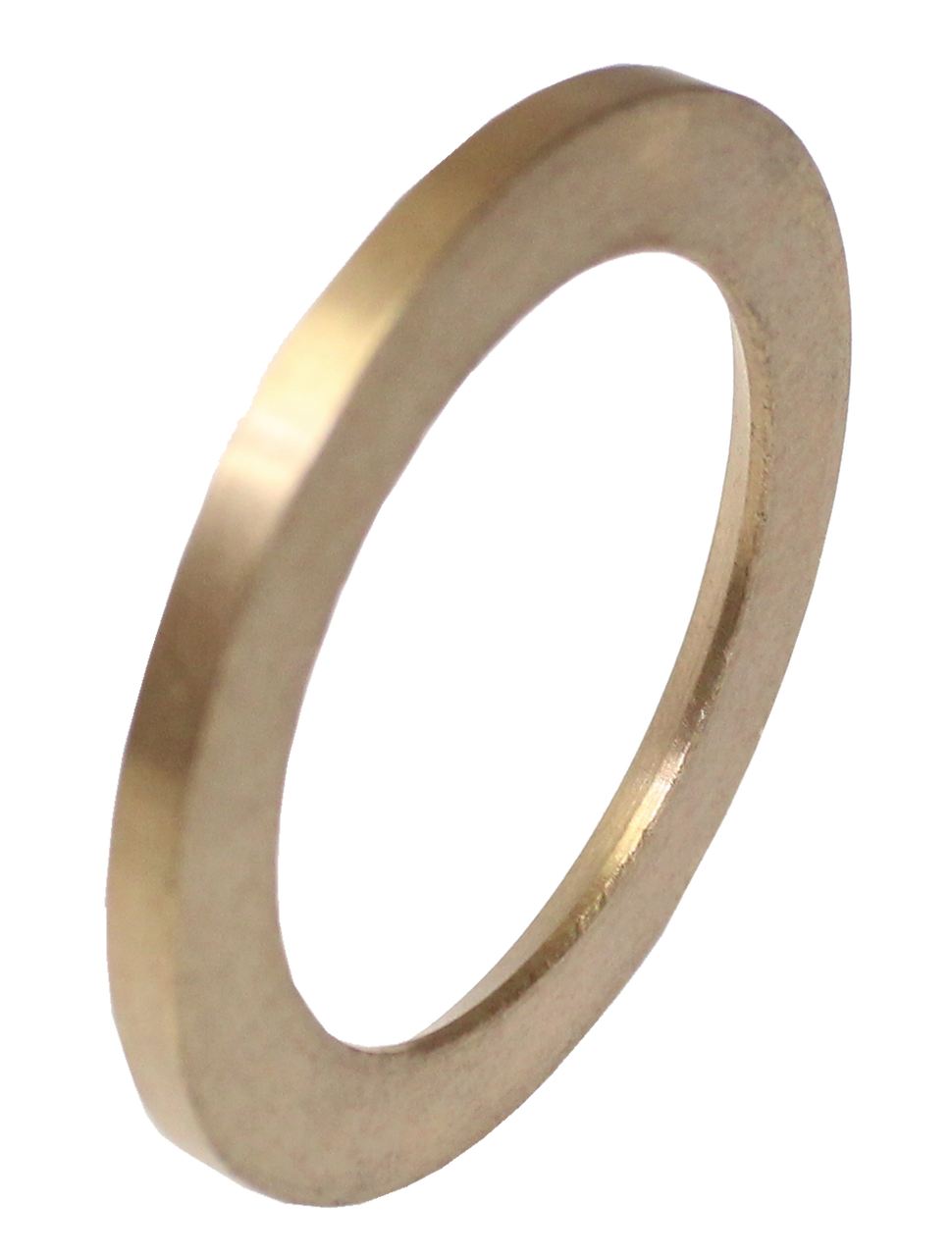

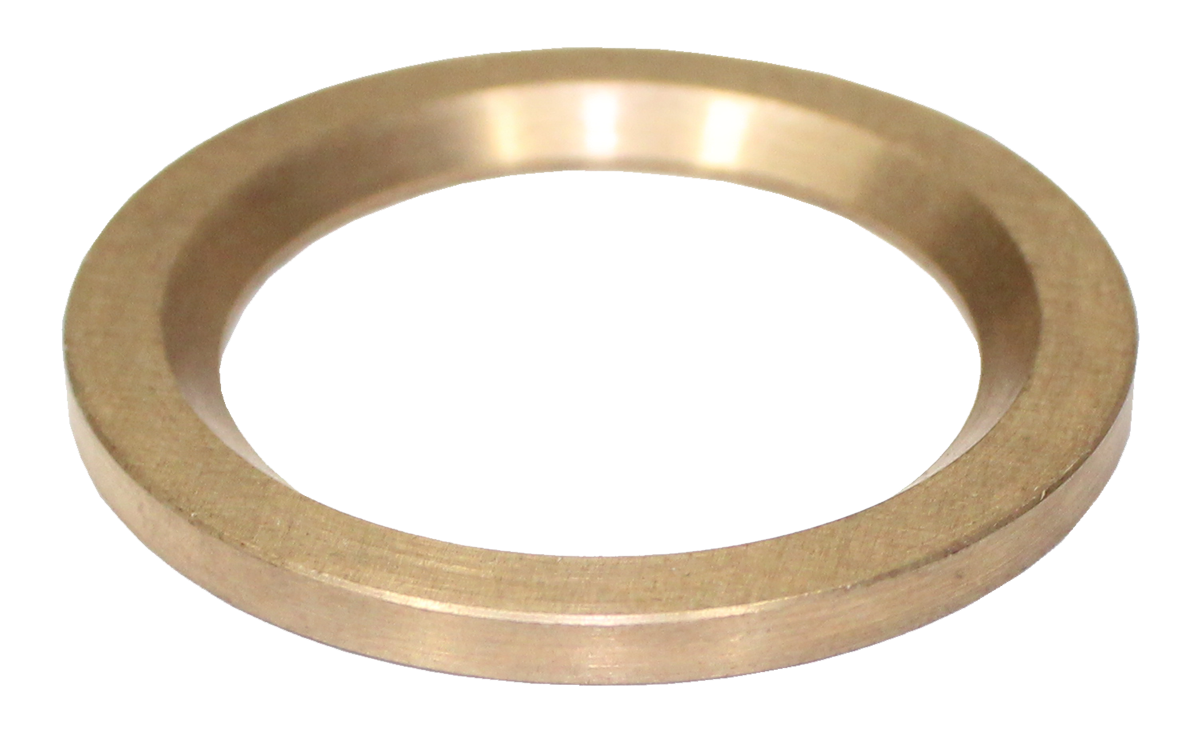

QU40232 Early Type Brass Axle Shaft Spindle Thrust Washer

QU40232 Early Type Brass Axle Shaft Thrust Washer measure just under 1.875" outside diameter. This thrust washer was used on most 1967-1972 4x4's with open knuckle front axles plus a few models from all manufacturers as late as 1974. It is also found on Jeep CJ models through the 1976 model year. Sold individually, but requires 2 per vehicle. Made in USA.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Placement
Matching Parts
Applications

Tech Note 1: Placement
Chamfer on inside goes against the axle shaft face.

Tech Note 2: Matching Parts
Matching Parts for QU40232 Axle Shaft Thrust Washer:
QU40043 One Piece Spindle to Axle Shaft Seal
QU20040 Rubber Axle Shaft V-Seal
QK4734 Spindle Axle Shaft Bearing

Applications
(Incomplete)

Chevy/GMC:
Dana 44 Open Knuckle Front Axles: 1969, 1970, 1971, 1972

Ford:
Bronco Dana 30 Front Axles: 1966, 1967, 1968, 1969, 1970, 1971
1/2 ton 4x4's with Dana 44 Open Knuckle Front Axles: 1966, 1967, 1968, 1969, 1970, 1971, 1972

Jeep:
CJ Dana 30 Open Knuckle Front Axles: 1972, 1973, 1974, 1975, 1976
May fit some Dana 44 Open Knuckle Front Axles: 1973, 1974, 1975, 1976
