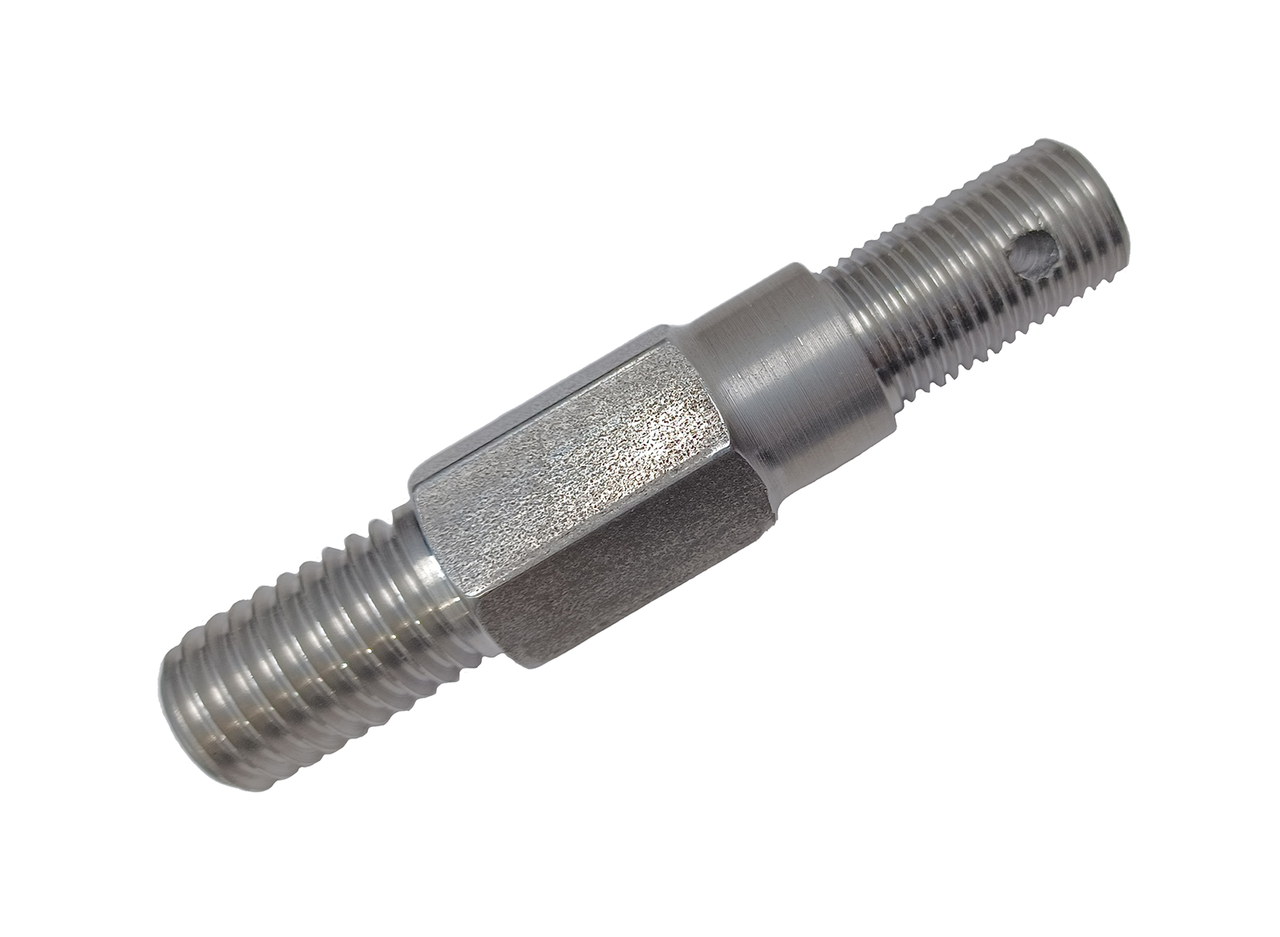

TK20315 New Remote Transfer Case Mounting Stud for Ford Dana 24, NP205

TK20315 New Torque King® Remote Transfer Case Mounting Stud for Ford Dana 24 and NP205 Remote Mount Transfer Cases fits 1959-1977.5 Ford F-250 and 1959-1966 Ford F-100 4x4 trucks with Dana 24 or New Process NP205 Remote (Divorced) Mount part time transfer cases.

Also See: QU20315U Used Remote Transfer Case Mounting Stud available while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Specs
Matching Parts
Applications

Tech Note 1: Specs
Transfer Case End: 5/8" coarse thread
Nut End: 9/16" fine thread
Hex Size: 3/4"

Tech Note 2: Matching Parts
Exploded View XV4008 1973-1977.5 F250 Remote Mount NP205 Transfer Case Exploded View
QK2038 Mount Kit

Applications:
Ford:
F100 with Dana 24 Transfer Case: 1959, 1960, 1961, 1962, 1963, 1964, 1965
F250 with Dana 24 Transfer Case: 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
F250 with New Process NP205 Remote Mount Transfer Case: 1973, 1974, 1975, 1976, 1977 to 1977.5

Note: Drawing is a Large File that may take Longer to Load
