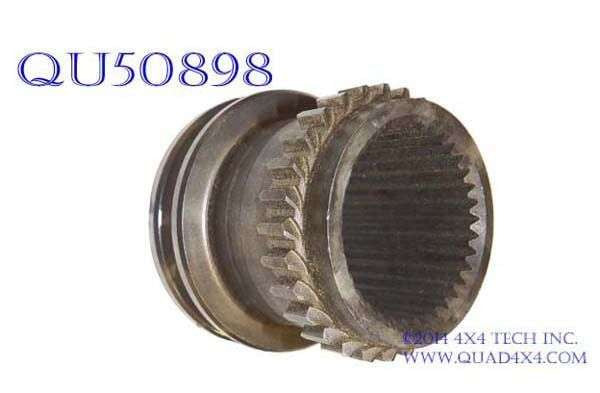

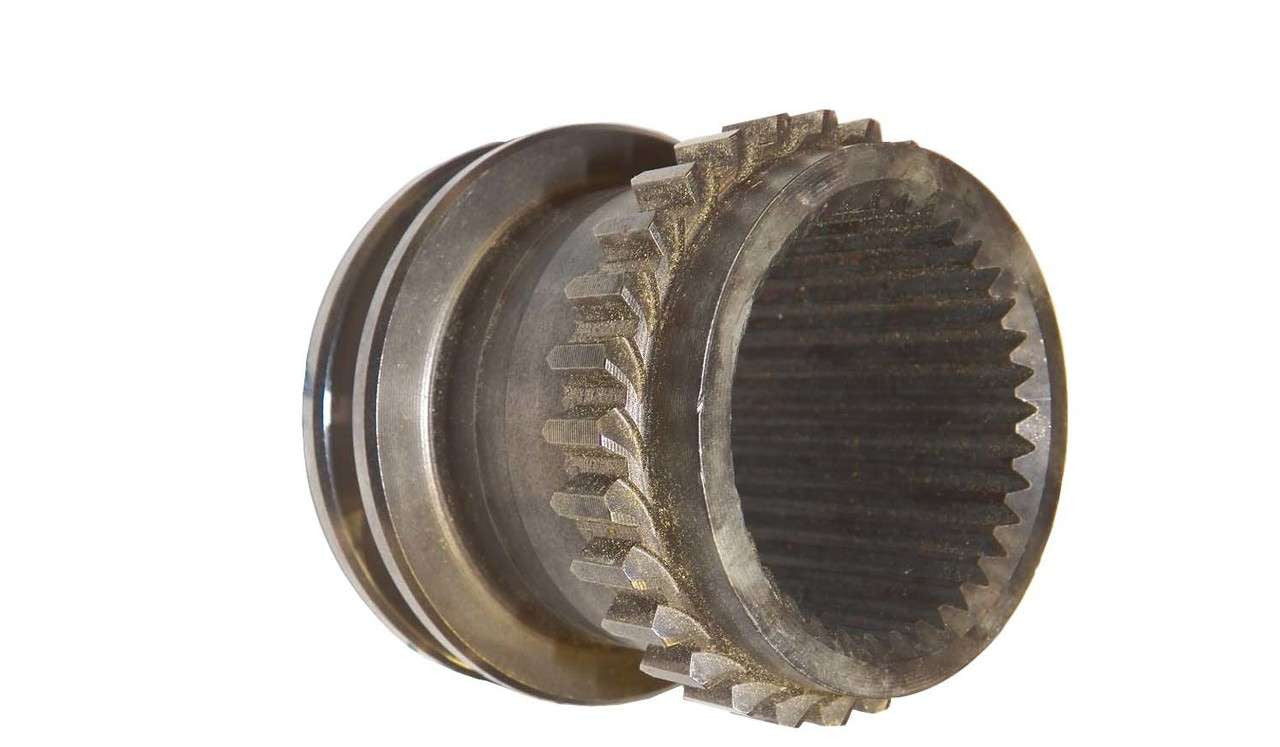

QU50898 NP231D & 2001-2002 NP241DLD Transfer Case Range Shift Hub

QU50898 Range Shift Hub has 1-way input side clutch teeth for many NP231 and late model (2001-2002) Ram 2500 NP241DLD transfer cases. This is a genuine New Process Original Equipment part.

Also See: QU50898U Used Range Shift Hub available while supplies last

2001-2002 Ram 2500 NP241DLD Assembly Numbers:
52105025AC
52105025AD

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts for NP231 Transfer Case
Matching Parts for NP241DLD Transfer Case
Applications

Tech Note 1: Matching Parts for NP231 Transfer Case
Saved for Future Use

Tech Note 2: Matching Parts for NP241DLD Transfer Case
Exploded View XV4004 1998-2002 Dodge Ram NP241DLD Transfer Case
QU10857 Input Seal
QU10893 Input Shaft Snap Ring
QU50874 5/8" Wide Input Bearing
QU50873 15/16" Wide Input Bearing
QU10814 Input Shaft to Planetary Snap Ring
QU11039 Planetary Lock or Thrust Plate
QU10572 Input Shaft to Planetary Thrust Washer
QU50114/X10000 Pilot Bearings
QU50153 6 Pinion Planetary Carrier
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 2.31 Quarts to Fill

Applications
Many NP231 Transfer Cases
Late Model Ram 2500 4x4 trucks with NP241DLD transfer cases (Assembly Numbers: 52105025AC, 52105025AD): 2001, 2002
